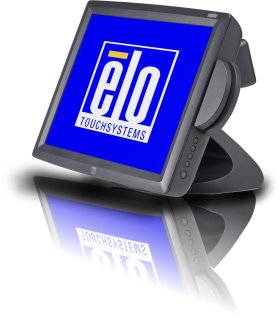

1529L AT IT SC

Dotykowy monitor LCD o przekątnej ekranu 15” i rozdzielczości 1024x768 75 Hz. Posiada podwójny kontroler ekranu dotykowego (USB/RS232), wbudowany zasilacz i głośniki. Demontowalna podstawa (opcja montażu VESA).
Dostępne technologie dotykowe: AccuTouch, IntelliTouch, Surface Cap.

Tabelka poniżej prezentuje parametry techniczne urządzenia. W przypadku, gdyby prezentowane w niej informacje były niekompletne lub budziły wątpliwości prosimy o kontakt mailem bądź telefonicznie z naszym działem technicznym. Dodatkowo służymy pomocą w doborze właściwego urządzenia tak, aby optymalnie spełniało wymagania Państwa projektu.

Product specification
LCD Display	15.0" TFT Active Matrix Panel
Display Size	304.1(H) x 228(V) mm
Pixel Pitch	0.297(H) x 0.297(V) mm
Display Mode	VGA 640 x 350 (70 Hz) VGA 720 x 400 (70 Hz) VGA 640 x 480 (60 / 72 / 75 Hz) SVGA 800 x 600 (56 / 60 / 72 / 75Hz) XGA 1024 x 768 (60 / 70 / 75Hz)
Native	XGA 1024 x 768
Contrast Ratio	400 : 1 (typical)
Brightness LCD AccuTouch IntelliTouch CarrollTouch Surface Capacitive Acoustic Pulse Recognition	350 cd/m2with AT 287 cd/m2, IT 322 cd/m2, IR 322 cd/m2, SC 294 cd/m2 350 cd/m2 (Typical) 287 cd/m2 (Typical) 322 cd/m2 (Typical) 322 cd/m2 (Typical) 294 cd/m2 (Typical) 322 cd/m2 (Typical)
Response Time	Tr= 5 msec, Tf= 11 mesc typical(CPT CLAA150XP01P) Tr= 4 msec, Tf= 12 mesc typical(AU G150XG01)
Display Color	16.2 million color, 6 bit with dithering
Viewing Angle	(L/R)= -60o/+60o (typical), (U/D) -607+40 (typical)
Input Signal	VGA Analog Video R.G.B. Analog 0.7V peak to peak Sync TTL Positive or Negative, Composite Sync, Sync on green DVI Video Digital TMDS Input
Signal Connector	15 Pin D-Sub, DVI-D
Front Control	Power on / off , Menu, A , , Select
OSD	Contrast, Brightness, H/V-Position, Recall default, Color Temperature, Volume, Sharpnss, Phase, Clock OSD H/V position, OSD Time, Auto Adjust, OSD Language, Input Select
Plug Play	DDC1 / 2B
Touch Panel (optional)	AccuTouch, IntelliTouch and CarrollTouch, Surface Capacitive, Acoustic Pulse Recognition
Power	Input: AC 85-265V, 47-63Hz, or DC 12V/4A (max.)
Operating Conditions	Temp 0oC ~ 40oC (41oF ~ 95oF) Humidity 20% ~ 80% (No Condensation) Altitude To 12,000 Feet
Dimensions (HxWxD)	354 x 301 x 285mm
Weight (Net)	20.1lbs., monitor weight 16.2 lbs.
Certifications	UL, C-UL, FCC-B, CE, Semko, VCCI, MPRII, C-TICK
Construction	Top: Polyester with outside hard-surface coating with clear or antiglare finish. Inside: Transparent conductive coating. Bottom: Glass substrate with uniform resistive coating. Top and bottom layers separated by Elo-patented separator dots.
Positional Accuracy	Standard deviation of error is less than 0.080 in. (2.03 mm). This equates to less than 1%.
Touchpoint Density	More than 100,000 touchpoints/in2 (15,500 touchpoints/cm2).
Touch Activation Force	Typically less than 4 ounces (113 grams).
Surface Durability	Meets Taber Abrasion Test (ASTM D1044), CS-10F wheel, 500 g. Meets pencil hardness 3H.
Expected Life	AccuTouch technology has been operationally tested to greater than
Performance	35 million touches in one location without failure, using a stylus similar to a finger.
Optical Light Transmission (per ASTM D1003)	Typically 85% at 550-nm wavelength (visible light spectrum).
Visual Resolution	All measurements made using USAF 1951 Resolution Chart, under 30 X magnification, with test unit located approximately 1.5 in. (38 mm) from surface of resolution chart. Antiglare surface: 6:1 minimum.
Haze (per ASTM D1003)	Antiglare surface: Less than 15%.
Gloss (per ASTM D2457)	Antiglare surface: 90 20 gloss units tested on a hard-coated front surface.

Cechy produktu:
Komputery przemysłowe
LCD, PanelPC
Typ urządzenia ZigBee
Producent	Elo
Rozmiar ekranu	15"
Interfejsy	USB
Interfejsy graficzne	VGA
Typ panelu	Panel LCD
Porty szeregowe	RS-232
Gniazdo sieciowe	SC
Inne	Wyświetlacz
Rodzaj montażu	Wolnostojący
