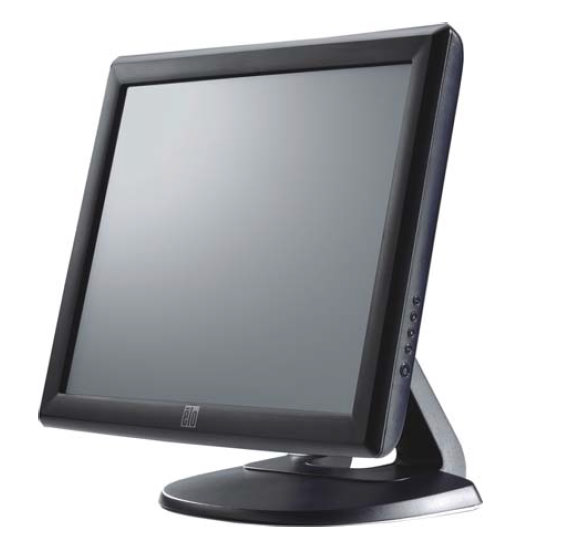

1715L

Dotykowy monitor LCD o przekątnej ekranu 17” i maksymalnej rozdzielczości 1024x768 (75 Hz); wodoodporny, posiada podwójny kontroler ekranu dotykowego (USB/RS232) i wbudowany zasilacz. Demontowalna podstawa (opcja montażu VESA).
Dostępny w trzech technologiach dotykowych: AccuTouch, IntelliTouch, Surface Capacitive.

Tabelka poniżej prezentuje parametry techniczne urządzenia. W przypadku, gdyby prezentowane w niej informacje były niekompletne lub budziły wątpliwości prosimy o kontakt mailem bądź telefonicznie z naszym działem technicznym. Dodatkowo służymy pomocą w doborze właściwego urządzenia tak, aby optymalnie spełniało wymagania Państwa projektu.

Product specification
LCD Display	17" TFT Active Matrix Panel
Display Size	337.9(H) x 270.33(V) mm
Pixel Pitch	0.264(H) x 0.264(V) mm
Display Mode	VGA 640 x 350 (70Hz) VGA 720 x 400 (70Hz) VGA 640 x 480 (60 / 72/ 75Hz) SVGA 800 x 600 (56 / 60 / 72/ 75Hz) XGA 1024 x 768 (60 / 70 / 75Hz)
Max. Resolution	SXGA 1280 x 1024 (60 / 70 / 75Hz) SXGA (1280 x 1024) at 75Hz maximum
Contrast Ratio Brightness	800 : 1 (typical) NonTouch: typical 280 Cd/m2 Min 240 Cd/m2 IntelliTouch: typical 258 Cd/m2 Min 221 Cd/m2 AccuTouch: typical 230 Cd/m2 Min 197 Cd/m2 Surface Capacitive Touch: typical 238 Cd/m2 Min 204 Cd/m2 Acoustic Pulse Recognition: typical 258 Cd/m2 Min 221 Cd/m2
Response Time	Tr: 15 ms Tf: 10 ms (Typ.)
Display Color	16.7M
Viewing Angle	Vertical -80o~ +80 (Typ.) Horizontal -80o~+80o(Typ.)
Input Signal	Video R.G.B. Analog 0.7Vp-p, 75 ohm Sync TTL Positive or Negative
Signal Connector	Mini D-Sub 15 pin
Front Control	Menu,A,T, Select, Power
OSD	Contrast, Brightness, H-Position, V-Position, Color Temperature, Phase, Clock, OSD Time, Recall, Language: English, French, German, Spanish, Japanese
Plug Play	DDC1 / 2B
Touch Panel (optional)	IntelliTouch, AccuTouch, Surface Capacitive Touch, APR
Power Adapter	Input AC 100-240V, 50/60Hz
Operating Conditions	Temperature 0oC ~ 40oC (32oF ~ 104oF) Humidity 20% ~ 80% (No Condensation) Altitude To 12,000 Feet
Storage Conditions	Temperature -20oC ~ 60oC (-4oF ~ 140oF) Humidity 10% ~ 90% (No Condensation)
Dimensions (HxWxD)	391 x 366 x 203mm
Weight (Net)	7Kg
Certifications	UL, C-UL, FCC-B, CE, VCCI, C-Tick, MPRII , S(Semko)
Positional Accuracy	Standard deviation of error is less than 0.080 in. (2.03 mm). Equates to less than 1%.
Touchpoint Density	More than 100,000 touchpoints/in2 (15,500 touchpoints/cm2).
Touch Activation Force	Typically less than 3 ounces (85 grams).
Surface Durability	Surface durability is that of glass, Mohs hardness rating of 7.
Expected Life Performance	No known wear-out mechanism, as there are no layers, coatings, or moving parts. IntelliTouch technology has been operationally tested to more than 50 million touches in one location without failure, using a stylus similar to a finger.
Sealing Optical Light Transmission (per ASTM D1003)	Unit is sealed to protect against splashed liquids, dirt, and dust. 90%
Visual Resolution	All measurements made using USAF 1951 Resolution Chart, under 30X magnification, with test unit located approximately 1.5 in (38 mm) from surface of resolution chart. Clear surface: Excellent, with no noticeable degradation. Antiglare surface: 6:1 minimum.
Gloss (per ASTM D2457
using a 60-degree gloss meter)	Antiglare surface: Curved: 60 20 gloss units or 75 15 gloss units.
Environmental
Chemical Resistance	The active area of the touchscreen is resistant to all chemicals that do not affect glass, such as: Acetone Toluene Methyl ethyl ketone Isopropyl alcohol Methyl alcohol Ethyl acetate Ammonia-based glass cleaners Gasoline Kerosene Vinegar
Electrostatic Protection (per EN 61 000-4-2, 1995)	Meets Levels 4 (15kV air/8 kV contact discharge)

Cechy produktu:
Komputery przemysłowe
LCD, PanelPC
Producent	Elo
Rozmiar ekranu	16" - 19"
Interfejsy	USB
Typ panelu	Panel LCD
Porty szeregowe	RS-232
Przekątna ekranu	16" - 19"
Inne	Wyświetlacz
Rodzaj montażu	Wolnostojący
