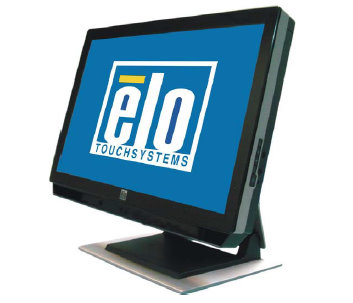

19R1

Terminal dotykowy o przekątnej ekranu LCD 19" i rozdzielczości 1440x900. Oparty na procesorze Dual-Core Intel 1.6 GHz Atom i chpsecie Intel 945GC/ICH7; grafika Intel Graphics Media Accelerator 950; 1GB DDR2 533MHz SDRAM. Posiada porty: 5x USB, 1x VGA, 1x Ethernet, 1x 3,5mm line-in, 1x 3,5mm line-out, 1x 3,5mm mic-in, 1x parallel, 1x RS-232, 2x PS/2, 1x SATA, 1x PSCI, 1x S/PDIF, 1x IDE. Obsługiwany system operacyjny: Windows XP.

Tabelka poniżej prezentuje parametry techniczne urządzenia. W przypadku, gdyby prezentowane w niej informacje były niekompletne lub budziły wątpliwości prosimy o kontakt mailem bądź telefonicznie z naszym działem technicznym. Dodatkowo służymy pomocą w doborze właściwego urządzenia tak, aby optymalnie spełniało wymagania Państwa projektu.

Product specification
Processor	Integrated Dual-Core Intel- 1.6 GHz Atom processor 330 with a 533 MHz system bus
Memory (RAM)	1GB DDR2 533MHz SDRAM (Expandable to 2GB, available as a custom order only)
Hard disk drive	1 x 2.5" SATA hard drive, 80GB
Chipset	Intel- 945GC/ICH7
Graphics	Intel- Graphics Media Accelerator 950
Rear I/O (Input/Output)	VGA:1Ethernet: 1 (10/100/1000 USB: 2 (USB 2.0) Audio: Integrated High Definition Audio (with 6-channel mode) 1 x 3.5 mm line-in 1 x 3.5 mm line-out 1 x 3.5 mm mic-in Parallel:1Serial: 1 (RS-232) PS/2: 2(1x K/B and 1 x Mouse)
Additional Internal I/O (for factory customization only)	USB: 3 (USB 2.0 ports) S/PDIF:1IDE: 1 (44 Pin) SATA:1PCI: 32-bit/ 33MHz, 1 slot
Enclosure color	Dark gray with silver accent stripe
Display	Size: 19.0" diagonal Type: Active matrix TFT LCD Aspect ratio: 16:10 (Wide)
Computer dimensions (max. with stand)	Width: 17.7" (449 mm) Height: 15.0 (380 mm) Depth: 11.8"(300 mm) Dimensions vary with tilt angle and options selected
Operating systems supported	Microsoft Windows- XP Professional SP3 (also available without OS)
Power supply	Type: External DC (power brick) Input: 110-240 V~, 50-60 Hz, 2.0-1.0 A Output: 12 V at 9.165 A max.
Power consumption	110 W max.
Form factor	Mini-ITX
Touchscreen	Acoustic Pulse Recognition (APR)
Real time clock	Replaceable Lithium battery backed up real time clock
Options	Magnetic stripe reader and speaker bar unit Speaker bar. Custom upgrades only: DVD burner drive (internal) USB wireless adapter TV tuner card (available for 19R1 only)
Temperature	Operating: 0C to 40C (32F to 104F) Storage: -20C to 60C (-4F to 140F)
Humidity (noncondensing)	Operating: 20%-80% Storage: 5%-95%
Weight (with all options)	Actual: 10.66kg (23.5 lbs) Actual without stand: 7.71kg (17 lbs) Shipping: 14.06kg (31 lbs)
Warranty	3 years
Optional product coverage	Advance Unit Replacement program (North America only)
Backlight lamp life	Minimum 40,000 hours to half brightness
MTBF	50,000 hours demonstrated
Agency approvals	UL/cUL (UL60950-1/CSA C22.2 No. 60950-1-03), FCC Class A, TUV (EN60950-1), CE
Elo declarations	RoHS, WEEE, CE
On-screen display (OSD)	Controls (side): menu, up, down, select, power Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, recall defaults, sharpness, volume, mute, input video select OSD language (English, French, Italian, German, Spanish, Japanese, Simplified and Traditional Chinese)
Display Specifications
Useful screen area	Horizontal: 408 mm (16.0") Vertical: 255 mm (10.0")
Native (optimal) resolution	1440 x 900 at 60Hz
Colors	16.7 million
Brightness (typical)	LCD panel: 300 nits Acoustic Pulse Recognition: 270 nits
Response time-total (typical)	5 msec
Viewing angle (typical)	Horizontal: 80 or 160 total Vertical: 80 or 160 total
Contrast ratio (typical)	1000:1
