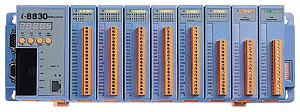

I-8830-MTCP

Wbudowany kontroler Modbus/TCP posiadający: CPU 40MHz, 512kb Flash, 256kb SRAM, 2x RS232, 1x RS232/485, Ethernet 10BaseT, 7-segmentowy wyświetlacz, Mini OS7, Modbus/TCP, 8 slotów rozszerzeń.

Tabelka poniżej prezentuje parametry techniczne urządzenia. W przypadku, gdyby prezentowane w niej informacje były niekompletne lub budziły wątpliwości prosimy o kontakt mailem bądź telefonicznie z naszym działem technicznym. Dodatkowo służymy pomocą w doborze właściwego urządzenia tak, aby optymalnie spełniało wymagania Państwa projektu.

Features:

Supports Modbus/RTU to Modbus/TCP converter. I-8000E -MTCP's COM Port can be setted as gateway mode, and connect to Modbus/RTU device. Host PC can link       the Modbus/RTU device by Modbus/TCP protocol with enthernet.   Supports VxComm technique for every COM port of controllers. When the serial device does not support Ethernet, user still can use virtual COM Port to access the device by Ethernet . Just set I-8000E -MTCP's COM Port as VxComm mode, and install VxComm driver on PC, then mapping a virtual COM Port to I-8000E -MTCP's COM Port. After all, user's program can communicate with serial COM Port of remote device by standard RS-232 process.   Supports 8K and 87K DI/DO/AI/AO modules. Refer to Modbus Utility on line help   Automatically scan I/O modules and range I/O registers address to continuous. You can plug I/O modules in any slot. The Modbus firmware can automatically scan all slots and range I/Os to registers in continuous.You can use Modbus Utility to see the I/O address mapping.   Support power on value and safe value for analog/digital output module. Refer to Modbus Utility on line help   Allowed several host PCs( client ) access simultaneously. It depends on how many serial ports on the 7188E/8000E and how many serial ports of 7188E/8000E that each PC       connected on it.  Firmware modifiable. We provide the Modbus SDK allowing users to develop their custom Modbus firmware.

Construction
Construction		Plastic Case
Mounting Configuration		DIN Rail,Wall
CPU
CPU		AMD188ES
CPU Maximum Frequency		40 MHz
Memory
System Memory	Maximum Memory Size	256 KB
	On Board	256 KB
Non-Volatile Memory	Maximum Memory Size	2 KB
	On Board	2 KB
	Type	EEPROM
Solid State Disk	On Board	512 KB
	Maximum Memory Size	512 KB
	Type	Flash
Interface
Bus Extension	Type	CPU Local Bus,RS-485
	Slots	8
I/O Modules		I-8000 Series I/O Modules
Serial Interface	Type	2xRS232,RS232/RS485
	Maximum Baud Rate	115200 Bit/sec
	Connectors	DB9,Screw Terminal
Ethernet	Standards	10BaseT (Modbus/TCP Supported)
	Connectors	RJ-45
Timers
Real Time Clock		Yes
Watch Dog Timer		1.6 s
Cables & Connectors
Connectors	Power Supply Connectors	Screw Terminal
	Others	DB9 Screw Terminal
Isolation
Isolation	COM Ports	2500 V
	Power	3000 V
Switches and LED's
LED Indicators		LEDs,4.5 Digit LED Display
Keys and Switching		Control Buttons
Power
Power Requirements		+10...+30V
Power Consumption		3 W
MTBF
MTBF		80000 h
Software
Software	Operation System	Special
	System	Software Library
Operation
Operation	Temperature	-25...+75 °C
	Humidity	5...95 %
Storage
Storage	Temperature	-30...+85 °C
Dimensions and Weight
Dimensions	Width	348 mm
	Height	110 mm
	Depth	75.5 mm
Certifications
GOST Certificate (Russia)		ROSS TW.AIO64.B03757
Pattern Approval Certificate of Measuring Instruments		TW.C.34.004.9772

Cechy produktu:
Konwerter
Komputer, Sterownik PLC
Konwertery
Producent	ICPDAS
Dysk	Flash
Interfejsy	Ethernet
Typ modułu	Moduł I/O Moduł rozszerzeń PLC
Cechy urządzenia	Programowalny Modbus
Porty szeregowe	RS-232 RS-485 RS-232 x2
Szybkość procesora	Do 500MHz
Interfejsy sieciowe	10/100 TX
Typ procesora	AMD
Inne	Szeroki zakres temperatur Drabinka PLC
Cechy urządzenia	Do wbudowania
Inne	Wyświetlacz
Rodzaj switcha	Nieświatłowodowe
Cechy urządzenia	Wyświetlacz Rozszerzalny
Typ konwertera	Konwerter programowalny
