eBOX620-800-FL-D510-1.66G-D-RC-EU

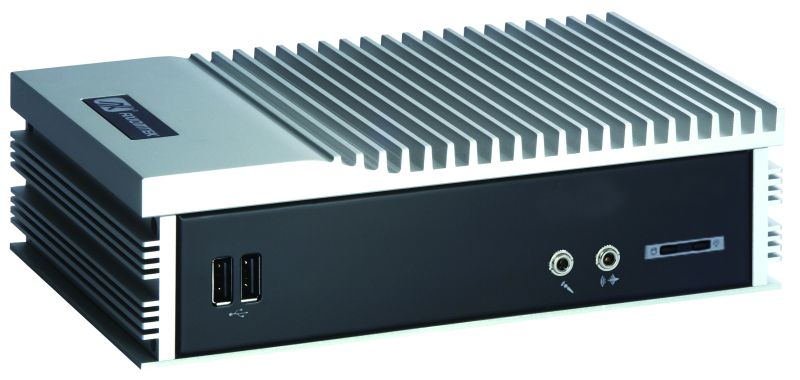

The eBOX620-800-FL offeres fanless cooling, wide operating temperature and optimized expandability. The embedded box computer utilizes the low power single-core IntelŸ Atom™ processor N450 1.66GHz and the dual-cores IntelŸ Atom™ processor D510 1.66GHz with IntelŸ ICH8M I/O controller hub. One 200-pin DDR2 SODIMM socket supports up to 2GB system memory. It offers -10C to +55C wide temperature range, and its friendly fanless design and unique thermal solution makes system cool remain its perfect computing performance and operate without noise. Rich I/O connectivity includes PCI Express mini card slot, audio, VGA, two LANs, four USB, one SATA, and three COM ports. The rugged eBOX620-800-FL is ideal for applications requiring a power-optimized and rich-graphics platform, such as digital signage, gaming, industrial control automation, POS, kiosk, and medical equipment applications.
Model has an additional DVI-I port.

Features:

Supports Intel Atom™ processor N450/D510 1.66 GHz Intel ICH8M chipset Supports 4 USB 2.0 ports and 3 COM ports Fanless operation design with full feature I/O DDR2-667 SODIMM max. up to 2 GB One 2.5" SATA drive bay and one CompactFlash™ 2.0 slot One internal PCI Express Mini Card slot

Product specification
Standard Color	Silver-Black
Construction	Aluminum extrusion and heavy-duty steel, IP40
CPU	Intel Atom processor N450 1.66 GHz single core/ D510 1.66GHz dual core
System Memory	1 x 200-pin DDR2 SO-DIMM max. up to 2 GB
Chipset	Intel ICH8M
BIOS	AMI
System I/O Outlet	1 x RS-232/422/485 (COM 1)2x RS-232 (COM 2/COM 3) 1 x VGA 1 x DVI-I (optional) 1 x Audio (Mic-in/Line-out) 2 x 10/100/1000Mbps Ethernet 4 x USB 2.0 1 x Vdc power input connector 1 x ATX power switch
Watchdog Timer	255 levels, 1 ~ 255 sec.
Storage Supports	1 x 2.5 SATA HDD drive bay 1 x CompactFlash
Expansion Interface	1 x PCI Express Mini Card (USB + PCI Express signal)
System Indicator	1 x green LED for system power-on 1 x orange LED for HDD active
Power Supply	Screw type AC 60W adapter Input: AC 90~264VOutput: DC12V@5A
Operating Temperature	-10C ~ +50C (14F ~ 122F) (with AtomD510 1.66 GHz, W.T. HDD) -10C ~ +55C (14F ~ 131F) (with Atom N450 1.66 GHz,W.T. HDD)
Storage Temperature	-20C ~ +80C (-4F ~ +176F)
Humidity	10% ~ 90% , non-condensing
Vibration Endurance	2 Grms with CF (5-500Hz, X,Y,Z directions)
Dimensions	200 mm (7.87") (W) x 120 mm (4.72") (D) x 56 mm (2.2") (H)
Weight (net/gross)	1.98 kg (4.36 lb)/2.6 kg (5.73 lb)
Certification	CE
EOS Support	XPE, WinCE, Linux

Product features:
Industrial computers
Computer, PLC
Manufacturer	Axiomtek
Compatible OS	Linux Windows
Processor type	Intel Intel Atom
Interfaces	USB Ethernet
Graphics interfaces	VGA DVI
Expansions	PCIe
Storage	CompactFlash 2.5" HDD HDD SATA
Other	Audio Fanless Box computer
GSM Modem	3G/HSPA
Wireless communication	Wi-Fi GSM Modem
Module type	I/O module
Device features	Programmable
Device type	BOX Computer
Serial ports	RS-232 RS-422 RS-485 RS-232 x2
Processor speed	More than 1,5GHz
Network interfaces	10/100 TX 1Gb TX
Power	60W
Device features	Embedded
Switch features	Non-fiber
I/O	Digital out
Converter type	Programmable converter
USB ports	USB x2 USB x3 USB x4 and more
GPS	GPS
