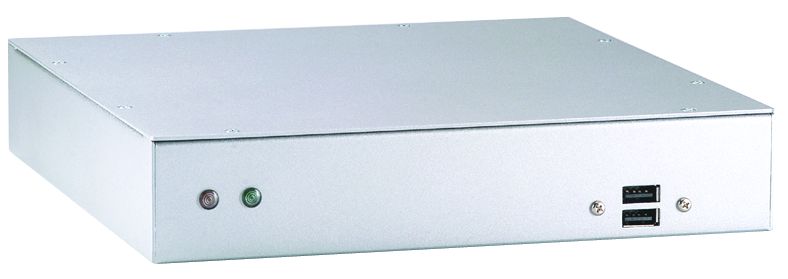

eBOX745-FL500 48VDC

The eBOX745-FL500 is a high performance fanless embedded system with low power AMD Geode LX processor onboard and various I/O, such as 4 COM ports, printer port, fast Ethernet, VGA, and high speed USB 2.0. This embedded computer is an extremely low power consumption system which supports AMD Geode LX800 500MHz processor or LX700 433MHz processor. Four COM ports support most industrial automation control application; with a wide range temperature operation (-20~+50C) and AC-in/DC-in power supply, the eBOX745-FL500 is an ideal for rugged environments, high performance embedded controller or I/O communication application.

Features:

Fanless operation AMD Geode™ LX800 500 MHz low voltage processor AMD LX + CS5536 chipset Extremely low power consumption Supports CompactFlash™ 70 watt AC-in or DC-in power supply

Product specification
Standard Color	Silver
Construction	Aluminum extrusion and heavy-duty cold-rolled steel, IP40
CPU	AMD Geode LX800 500 MHz onboard
System Memory	1 x 200-pin DDR SO-DIMM max. up to 1 GB
Chipset	AMD LX800 + CS5536
BIOS	Phoenix-Award 4Mbit with RPL/PXE LAN Boot ROM, SmartView and Customer CMOS backup
System I/O Outlet	3 x RS-232 (COM 2/3/4) 1 x RS-232/422/485 (COM 1) 1 x VGA 1 x LPT 1 x PS/2 keyboard/mouse 2 x 10/100Mbps Ethernet 3 x USB 2.0 1 x Vdcpower input terminal block (DC version) 1 x Vacpower input connector (AC version)
Watchdog Timer	255 levels, 1 ~ 255 sec.
Storage	1 x 2.5" IDE HDD drive bay 1 x CompactFlash
System Indicator	1 x green LED for system power-on 1 x orange LED for HDD active
Power Supply	DC AT 72W t: 18 ~36Vdc Output: +5V @ 10A, +12V @ 1.5A, -12V @ 0.3A
Operating Temperature	-20°C ~ +50°C (-4°F ~ +122°F) (with W.T. HDD, AC PSU)
Storage Temperature	-20°C ~ +80°C (-4°F~ +176°F)
Humidity	10% ~ 90%, non-condensing
Vibration Endurance	2 Grms with CF (5 ~ 500 Hz, X, Y, Z directions) 0.5 Grms with HDD (5 ~ 500 Hz, X, Y, Z directions)
Dimensions	225 mm (8.86") (W) x 225 mm (8.86") (D) x 51 mm (2.01") (H)
Weight (net/gross)	2.15 kg (4.74 lb)/2.9 kg (6.39 lb)
Certification	CE
EOS Support	XPE, WinCE, Linux, Windows

Product features:
Computer, PLC
Manufacturer	Axiomtek
Interfaces	USB LPT Ethernet PS/2
Graphics interfaces	VGA
Storage	CompactFlash 2.5" HDD IDE
Device type	BOX Computer
Serial ports	RS-232 RS-422 RS-485 RS-232 x2 RS-232 x3
Processor speed	500MHz - 1,5GHz
Network interfaces	10/100 TX
Processor type	AMD AMD LX
Other	Fanless Wide temperature Box computer
Device features	Embedded
Mount type	DIN rail mounting
USB ports	USB x2 USB x3
