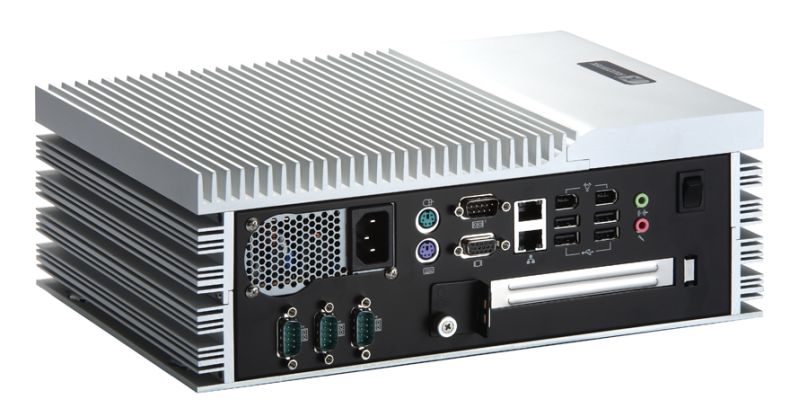

eBOX832-840-RC-EU

The eBOX832-840 supports Socket P (478-pin) IntelŸ Core™2 Duo, Core Duo, or CeleronŸ M processors with 533/667/800 MHz system bus. Incorporating the IntelŸ GME965 Express chipset, this high performance embedded box computer offers two graphics solutions including the cost-effective IntelŸ Graphics Media Accelerator X3100 and the onboard PCI Express x16 slot. In addition, the eBOX832-840 provides dual channel DDR2 533/677 SDRAM up to 4 GB. The eBOX832-840 is an all-in-one embedded box PC featuring rich I/O connections including two Gigabit Ethernet ports, six USB 2.0 ports, four COM ports (3 x RS-232, 1 x RS-232/422/485), PS/2, two IEEE 1394a ports, Audio and VGA connector. Additionally, the rugged box computers support various embedded operating systems including WindowsŸ CE, WindowsŸ XP Embedded (XPE) and Linux.

Features:

Socket P for IntelŸ Core™2 Duo/ CeleronŸ M processor up to 2.2 GHz IntelŸ GME965 + ICH8M chipset Supports 1 PCIe x16 slot High performance with full feature I/O Supports 6 USB 2.0 ports and 4 COM ports Supports dual 10/100/1000Mbps Ethernet ports Supports dual IEEE 1394a ports One 2.5 SATA HDD drive bay

Product specification
Standard Color	Silver-Black
Construction	Aluminum extrusionand heavy-duty steel, IP30
CPU	Socket P for Intel- Core2 Duo/ Celeron- M processor up to 2.2 GHz
System Memory	2 x 240-pin DDR2 DIMM max. up to 4 GB (The actual max. capacity will be less depending on system configuration.)
Chipset	Intel- GME965 + ICH8M
BIOS	Phoenix-Award 4Mbit with RPL/PXE LAN Boot ROM SmartView and customer CMOS backup
System I/O Outlet	3 x RS-232 (COM 2/3/4) 1 x RS-232/422/485 (COM 1) 1 x VGA 2 x IEEE 1394a 2 x Audio (Mic-in/Line-out) 2 x PS/2 keyboard/mouse 2 x 10/100/1000Mbps Ethernet 6 x USB 2.0 1 x Vac 100 ~ 240 power input connector
Watchdog Timer	255 levels, 1 ~ 255 sec.
Storage	1 x 2.5" SATA HDD drive bay
Expansion Interface	1 x PCIe x16 slot (Supports PCIe x1 and PCIe x4)
System Indicator	1 x green LED for system power-on 1 x orange LED for HDD active
Power Supply	AC 90 ~ 264V, 250W power supply (with fan)
Operating Temperature	0C ~ +45-C (32F ~ 113F) (with W.T. HDD)
Storage Temperature	-20C ~ +80-C (-4F ~ +176F)
Humidity	10% ~ 90%, non-condensing
Vibration Endurance	1 Grms with HDD (5 ~ 500 Hz,X,Y,Z directions)
Dimensions	300 mm (11.81") (W) x 210 mm (8.27 ) (D) x 104.5 mm (4.1V) (H)
Weight (net/gross)	6.3 kg (13.89 lb)/8 kg (17.64 lb)
Certification	CE
EOS Support	N/A

Product features:
Industrial computers
Computer, PLC
Manufacturer	Axiomtek
Compatible OS	Linux Windows
Processor type	Intel Intel Celeron M Intel Core 2 Duo
Interfaces	USB Ethernet PS/2
Graphics interfaces	VGA
Expansions	PCIe
Storage	2.5" HDD HDD SATA
Other	Audio Box computer
Device features	Programmable
Device type	BOX Computer
Serial ports	RS-232 RS-422 RS-485 RS-232 x3
Processor speed	More than 1,5GHz
Network interfaces	10/100 TX 1Gb TX
Device features	Embedded
Switch features	Non-fiber
Converter type	Programmable converter
USB ports	USB x2 USB x3 USB x4 and more
