rBOX101-4COM-FL1.33-RC-DC

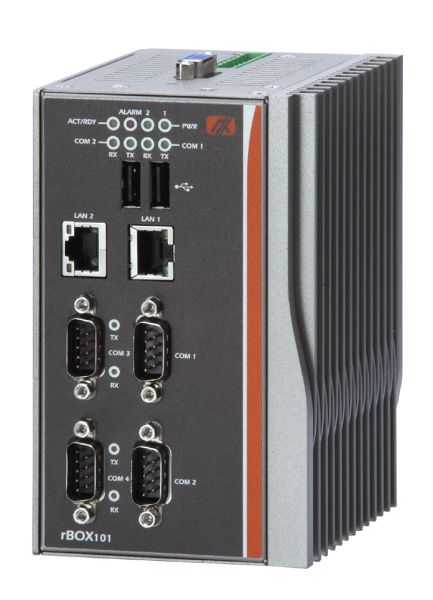

Axiomtek's rBOX101-4COM DIN-rail fanless ruggedized embedded system supports extra low power IntelŸ Atom™ processors Z510PT (1.1 GHz) and Z520PT (1.33 GHz) with IntelŸ US15WPT chipset. To withstand extreme range of working temperatures, this durable unit can perform in temperatures ranging from -40°C to +70°C. To fulfill different application needs, the rBOX101-4COM comes with complete expandability, including four isolated COM ports, two isolated Ethernet ports, two USB 2.0 ports, one VGA output and one CompactFlash™ socket for great data communication & expansion capability. The robust Din-rail system has a compact form factor and IP30 housing, making it ideal for both indoor and outdoor industrial applications such as power plant automation, facility monitoring systems, intelligent transportation systems and much more.

Features:

Fanless and cableless design Wide temperature operation of -40°C ~ +70°C Supports 4 isolated COM ports Supports 2 isolated Ethernet 2 watchdog timer LED indicators Optional 1 wireless (Wifi or 3G) SNMP V1/V2c Support one CompactFlash™, one SD card (optional) 2 power paths with terminal block and 12-48VDC Supports AXView monitoring software package

Product specification
Standard Color	Sliver-Black
Construction	Extruded aluminum and heary-duty steel, IP30
CPU	Intel Atom * processor Z510 PT (1.1 GHz) or Z520 PT (1.33 GHz)
System Board	RM820
System Memory	1 x 200-pin DDR2 SO-DIMM max. up to 2 GB
System I/O Outlet
Serial Port	4 x RS-232/422/485 (COM 1~4) Interface select by software or BIOS Supports Auto Flow Control in RS-485 mode ESD protection 15 KV Magnetic isolation protection 2 KV COM 1 and COM 2 speed up to 115.2kbps COM 3 and COM 4 serial port speed up to 921.6kbps
LAN	1 x 10/100/1000Mbps Ethernet 1 x 10/100Mbps Ethernet Magnetic isolation protection 1.5 KV
USB	2 x USB2.0 USB power distribution control by software
VGA	1 x DB15 connector
Power Input	2 x DC power input with terminal block
Alarm Contact	One relay output with current 0.5A @30VDC
Wireless	1 x Mini Card (supports USB only)
(upon request)	1 x SIM socket onboard
Watchdog Timer	2 WDT WDT 1 : one step is 1 sec, 255 levels WDT 2 : one step is 250ms, 255 levels
LEDs	System: Power, Alarm, Ready/Active, COM (TXD,RXD) Alarm: DC PWR1 or PWR2 is lost (default) User define event (option)
Storage	Supports 1 x CompactFlash 1 x SD card up to 32 GB (optional)
Installation	Din-rail, wall mount
Power Supply	2 power paths
Power Input Range	12-48VDC
Power Protection	DC Version: OVP (over voltage protection) UVP (under voltage protection) Reverse protection
Power Consumption (COM port link up)	With no load on 2 USB ports: 1.05A @ 12V, 12.6W 0.53A @ 24V, 12.72W 0.36A @ 36V, 12.96W 0.28A @ 48V, 13.44W With full load on 2 USB ports: 1.48A @ 12V, 17.76W 0.74A @ 24V, 17.76W 0.50A @ 36V,18W 0.38A @ 48V, 18.24W
Operating Temperature	-40 C ~ +70 C (-40 F ~ +158 F)
Storage Temperature	-45 C ~ +85 C (-49 F ~ +185 F)
Humidity	5% ~ 95%
Weight (net/gross|	1.38 kg (3 lb)/1.72 kg (3.78 lb)
Dimensions	81 mm (3.18 ) (W) x 110 mm (4.33) (D) x 135 mm (5.31) (H)
EOS Support	XPE, WinCE, Linux, Windows 7
ISO	Manufactured in an ISO9001 facility
Safety	UL508
Compliance	UL60950-1 EN60950-1 IEC60950-1
EMI	FCC part 15, class A
Compliance	EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3
EMS Compliance	EN61000-6-2 EN61000-4-2 (ESD standards) Contact: +/- 6 KV criteria B Air: +/- 8 KV criteria B EN61000-4-3 (radiated RFI standards) 10V/m, 80 to 1000 MHz 80% AM criteria A EN61000-4-4 (burst standards) Signal ports: +/- 2 KV criteria B DC power ports: +/- 2 KV criteria B EN61000-4-5 (surge standards) Signal ports: +/- 1 KV line-to-line criteria B DC power ports: +/- 0.5 KV line-to-earth criteria B EN61000-4-6 (induced RFI standards) Signal ports: 10 Vrms @ 0.15 ~ 80 MHz 80% AM criteria A DC power ports: 10 Vrms @ 0.15 ~ 80 MHz 80% AM criteria A EN61000-4-8 (magnetic field standards) 30 A/m @ 50, 60 Hz criteria A
Environmental Test Compliance	IEC60068-2-6 Fc (vibration resistance) 5 g @ 10 ~ 150 Hz, amplitude 0.35 mm (operation/storage/transport) IEC60068-2-27 Ea (shock) 25 g @ 11 ms (half-sine shock pulse operation) 50 g @ 11 ms (half-sine shock pulse storage/transport) IEC60068-2-32 Ed (free fall) 1 M (3.281ft)

Product features:
Computer, PLC
Manufacturer	Axiomtek
Compatible OS	Linux Windows
Processor type	Intel Intel Atom
Interfaces	USB Ethernet
Graphics interfaces	VGA
Storage	CompactFlash SD/MMC
GSM Modem	3G/HSPA
Wireless communication	Wi-Fi GSM Modem
Device type	BOX Computer
Serial ports	RS-232 RS-422 RS-485 RS-232 x3 RS-232 x4 and more RS-485 x2 and more RS-422 x2 and more
Processor speed	500MHz - 1,5GHz
Network interfaces	10/100 TX 1Gb TX
Other	Fanless Wide temperature Box computer
Device features	Embedded
Mount type	DIN rail mounting
USB ports	USB x2
