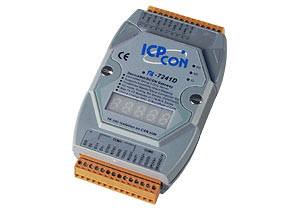

I-7241D

I-7241D jest to konwerter DeviceNet na protokół DCON.

Tabelka poniżej prezentuje parametry techniczne urządzenia. W przypadku, gdyby prezentowane w niej informacje były niekompletne lub budziły wątpliwości prosimy o kontakt mailem bądź telefonicznie z naszym działem technicznym. Dodatkowo służymy pomocą w doborze właściwego urządzenia tak, aby optymalnie spełniało wymagania Państwa projektu.

Features

NMT: Slave Support Predefined Master/slave Connection Set Dynamic Assembly Objects Mapping Support Offline Connection Set, Device Heartbeat message and Device Shutdown message Provide Assembly object Dynamic Product EDS File I/O operating modes: Polling, Bit-Strobe, Change of State/Cyclic Support max 15 i-7K/i-87K IO modules Provide friendly Utility to configure Baud Rate: 125Kb, 250Kb, 500Kb On-line change baud rate and MAC ID of CAN 7-segmemt LED to show operation mode, MAC ID, baud rate and error code

Applications

Control System Building Automation Factory Automation Distributed data acquisition

I-7241D Utility

Support auto-scan i-7K/i-87K modules Auto-scan i-7k/i-87K modules connected with i-7241D COM Port Show i-7k/i-87K modules configuration Show Application and Assembly Objects configuration Support IO connection path setting Support EDS file creating

Usage

The simple steps about how to use DNS_DCON gateway are described as follows:

Specification
Model	I-7241D
CPU	80188, 40MHz
Flash	512K bytes
SRAM	512K bytes
EERROM	2K bytes (Can upto 128K bytes or change to 2K/8K FRAM)
NVRAM	31 bytes
Real Time Clock	16 bit
Watch Dog Timer	CPU Built-in
COM1	RS232: TXD,RXD,RTS,CTS,GND
COM2	RS485: D2+, D2-
Communication Speed	115200 max
CAN Controller	Phillip SJA1000T CAN Controller
CAN Transceiver	Phillip 82C250/251CAN Transceiver
LED Directors	NS, MS, IO
Display	7-segment LED: 5digit
Isolated	2500Vrms on CAN side
Power Supply	3.9W unregulated +10VDC to +30Vdc
Operating Temp	-25C to 75C
Storage Temp	-30C to 85C
Humidity	5 ~ 95%
Dimensions	133 x 72 x 33 mm

Cechy produktu:
Konwerter
Konwertery
Typ urządzenia ZigBee
Producent	ICPDAS
Interfejsy	CAN
Typ konwertera	Konwerter prosty
Cechy urządzenia	Konwerter prosty
