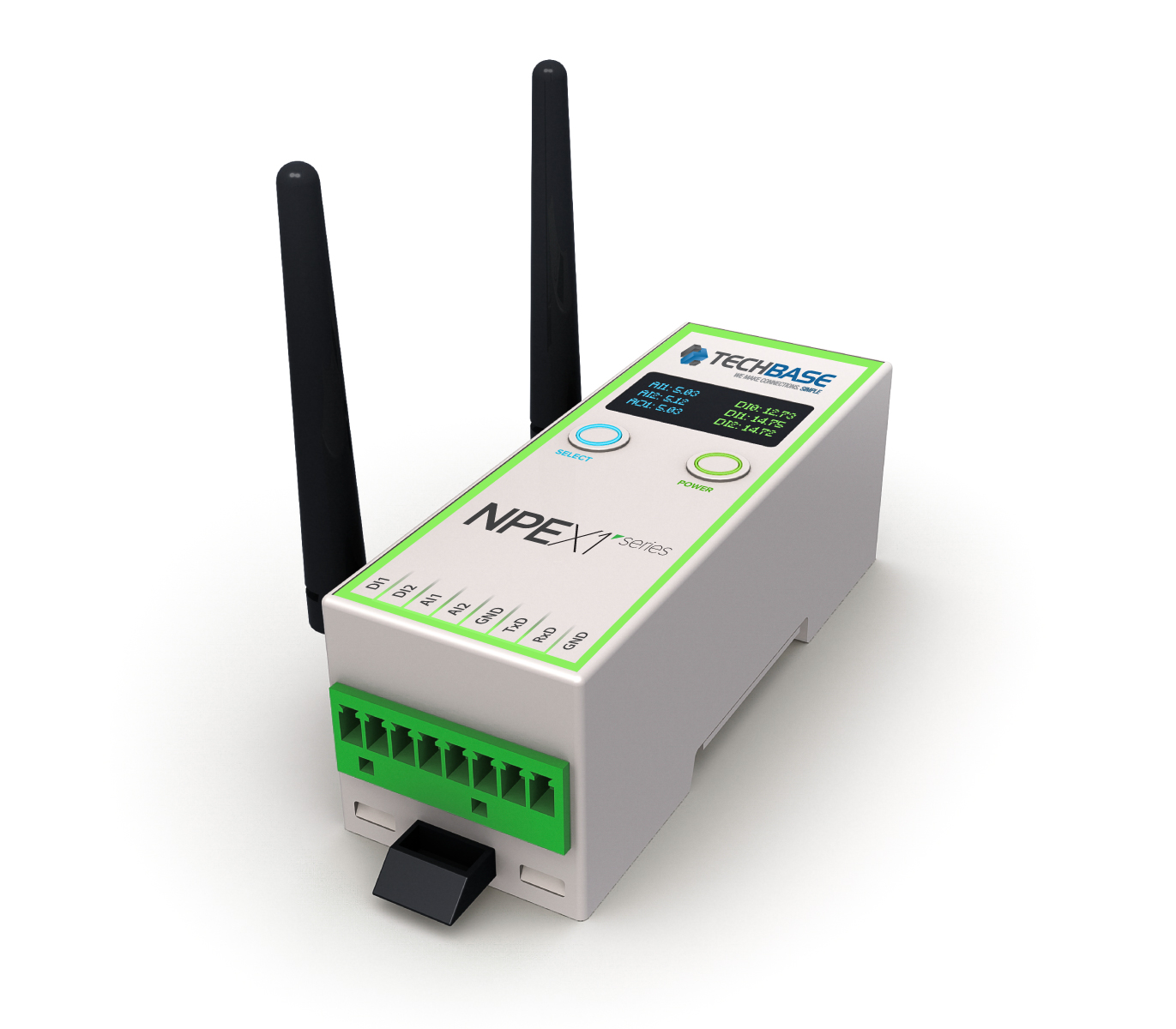

NPE X1 is a lightweight, but powerful energy-efficient and fully capable automation controller series. X1 is an industrial computer for remote data control and management, equipped with latest ESP32 compute module, wide range of serial, digital and analog inputs/outputs and wireless communication interfaces.
This cost effective solution is perfect for end-point devices. NPE X1 is powered by ultra-low power Dual-Core Tensilica LX6 240 MHz processor with 4MB pSRAM* and 4MB SPI flash memory on-board. Integrated Wi-Fi/BLE modem and extra wireline/wireless interfaces make the NPE X1 micro-computer a versatile addition to Industrial IoT solutions offered by TECHBASE company.

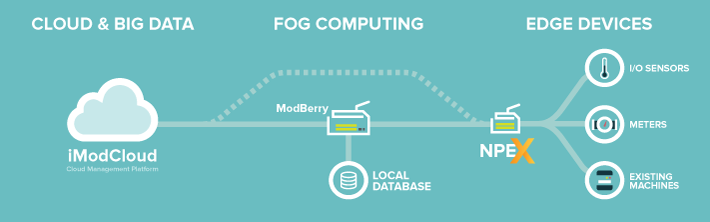

NPE X1 devices can easily work remotely with existing NPE X500 gateway for data accumulation and monitoring, to perform specific actions before sending the data to cloud services. The X1 - X500 installation can work as standalone Ecosystem (for example via MQTT), providing fog-computing to any installation.
SOFTWARE & OS
Use of ESP32-WROVER compute module adds the support for real-time operating systems (compared to most Raspberry Pi based Linux and Windows OS versions), and openness of the Espressif’s platform to NPE X1 industrial automation controller. Thanks to enormous community of ESP32 and Arduino users and developers, the NPE X1 can now adapt existing software solutions, tools and programming environments, for example:
ESP-IDF (Espressif IoT Development Framework)
Zephyr Project (scalable RTOS)
Arduino (C++)
MicroPython
Mongoose OS
etc.
END-POINT SENSORS
The NPE X1 device is a comprehensive end-point controller for variety of sensors located throughout any installation. It fully supports temperature and humidity sensors and new ones are currently developed, e.g. accelerometer, gyroscope, magnetometer, etc.
Base version
Dual-Core Tensilica LX6 240 MHz processor, RTC
512KB/4 MB pSRAM, 4 MB SPI Flash
Set of I/O interfaces: 1x RS-232/485, 4x Digital Input/Output, 2x Analog Input
Wi-Fi, Bluetooth v4.2 modem with U.FL (IPEX) antenna connector
NPE X1 computer offers you huge opportunities of registering and data access, using built-in input/output interfaces and communication channels, such as:
The design of the NPE X1 allows for trouble-free operation in industrial conditions. It has a fanless case and is characterised by high resistance to external conditions and high reliability.
NPE X1 is a multichannel telemetry module, providing constant uninterrupted access to data. It enables you to save the results of measurements and parameter values of connected devices - data can be saved to internal memory. You can also save data to internal and external databases.
NPE X1 can generate alarm signals and provide information on current parameter values. Built-in Wi-Fi / Bluetooth modem and optional LoRa / NarrowBand-IoT (LTE-NB1) / Sigfox modems enable wireless communication.
NPE X1 can operate as a typical PLC. The telemetry module can be programmed in ladder logic, which is easy to configure and allows for a quick start of an installation. NPE X1 is a stable central unit of an automation system.
With a built-in Wi-Fi/Bluetooth modem, NPE X1 offers advanced functions and can be configured as an industrial modem and a router operating in LoRa / NarrowBand-IoT (LTE-NB1) / Sigfox network. You can easily get a backup connection mode and define routing. NarrowBand-IoT (LTE-NB1) technology provides higher speed and lower latency at packet data transmission.
With a built-in NarrowBand-IoT (LTE-NB1) modem, the NPE X1 industrial computer can operate as a notify module: it can send alerts when defined parameter values are exceeded (e.g. temperature, pressure, humidity, etc.).
You can easily and quickly configure the content of a message which is send instantly when the value is exceeded.
System supervisor will immediately receive SMS or e-mail notification
Tabelka poniżej prezentuje parametry techniczne urządzenia. W przypadku, gdyby prezentowane w niej informacje były niekompletne lub budziły wątpliwości prosimy o kontakt mailem bądź telefonicznie z naszym działem technicznym. Dodatkowo służymy pomocą w doborze właściwego urządzenia tak, aby optymalnie spełniało wymagania Państwa projektu.
Specyfikacja sprzętowa
System
CPU
Dual-Core Tensilica LX6 240 MHz, RTC
Pamięć RAM
512 KB / 4MB pSRAM
Pamięć Flash
4MB SPI
System operacyjny
ESP-IDF (Espressif IoT Development Framework) Zephyr Project (skalowalny RTOS) Arduino (C++) MicroPython Mongoose OS, itd.
Zegar RTC
RTC, Wath Dog Timer
Porty szeregowe
Porty RS-232/RS-485
1x RS-232 (3 pin)/ 1x RS-485 (2pin)
Porty Ethernet
1x Ethernet 10/100 Mbps (opcja)
Wejścia/Wyjścia
Konfigurowalne wejścia/wyjścia cyfrowe
4x DI/DO, max. sprawność energetyczna: 500 mA
Wejścia analogowe
2x AI
Zasilanie
5V lub 10 ~ 30 V AC/DC, 1000 mA, opcjonalnie: zasilanie bateryjne
Wielokanałowy czujnik ZigBee z zasilaniem bateryjnym: wbudowany czujnik temperatury, 1 wejście analogowe, 2 wejścia cyfrowe, 1 wejście licznikowe, zasilanie bateryjne
Komputer przemysłowy NPE 9500, Quad-core Cortex A53 1.2 GHz, 1024 MB Ram, 8/16/32 GB eMMC Flash, Linux 4.19+, RTC, 240 byte SRAM, Watch Dog Timer, 1 x RJ-45 10/100 Mbps, 2 x RS-232(3 piny)/ 2 x RS-485(2 piny) 4 x DI, 4 x DO, 4 x DI/DO(konfigurowalne), 4 x AI, 1 x 1-Wire, 1 x HDMI, 1 x USB 2.0, 1 x SIM CARD slot, LTE, wi-fi, bluetooth, gps, zigbee
